RANAR Equipment Sales
RANAR screen printing equipment is very affordable and well built.


The simple yet durable and reliable design is an advantage for new business ventures. RANAR offers a complete line of floor presses as well as bench press models. You can purchase everything from exposure units to belt dryers and much more. They can even equip your entire shop with one of their complete shop packages.

It gets better; the Vista series floor presses in the 1 station model are upgradeable and expandable. A 6 color, 1 station press may be upgraded to 6 station in the future as your business grows. There are many economically feasible equipment options with RANAR screenprinting equipment.

Watch Screen Printing Shop Set Up Tour Video



Catspit Productions now offers free shipping on all major equipment and kit purchases over $100 in the continental United States. Crating fees still may apply. Parts and accessories still require a shipping fee. This is a special offer from Catspit Productions and is valid all year round.We sell the complete line of RANAR equipment and accessories. Please call us for sales assistance, 480-899-9089.




View The Ranar Equipment Information Sheets

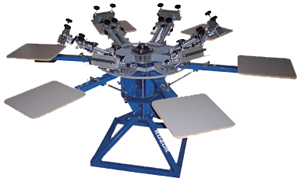

RANAR 6 Color / 6 Station Rotary Press With Micro Registration E-6600

RANAR Elite 6 Color 6 StationConfigured as 4, 6 or 8 colors and 4, 6 and 8 stations, the Elite Series is our top of the line t-shirt Printing Press. Standard features such as: precision-machined cast aluminum micro-adjust heads, adjustments for off contact, uneven or warped screens, screen angle, platen leveling, and our patented adjustable screen lift tension.

A strong extruded aluminum screen back clamp assures a tight grip of the screen frame up to a 26’’ wide capacity. A roller bearing and steel key for perfect registration every time. Construction features consist of all ball bearing ultra glide rotation, heavy duty tubular steel, powder coated for a rugged finish. Watch Video

  • 6 color-6 station design for production
  • Upgraded micro-registration hardware
  • Cast aluminum heads and screen clamps
  • High performance sealed roller bearings for smooth screen and arm rotation
  • Tool free adjustments
  • Adjustable screen tension
  • Easy centering of micros
  • Variable off contact
  • Larger screen capacity 26"
  • Shirt board leveling
  • Can be shipped dissembled. 3 year warranty

$4,295.00 plus crating


RANAR Vista Series Rotary Presses With Micro Registration

RANAR manufactures the Vista Series presses for the entry level screen printer. They are configured as 4, 6 or 8 colors and 1, 4, 6 or 8 stations. All of the Vista series have micro-registration, but can be purchased without for the Starting line t-shirt Printer on a budget. There are adjustments for warped or uneven screens, and off contact. As well as our patented adjustable screen lift tension. Plus a roller bearing and key index registration system for perfect multi-color prints every time.

These printing presses are made of steel and powder coated for a durable finish and upgradeable. Watch Video


RANAR 6 Color/6 Station Rotary Press With Micro Registration - V-6600

    RANAR V-6600
  • Micro Registration
  • Screen Angle Pitch & Bank Adjustment
  • Off-Contact
  • Modular Construction
  • Full 3 Year Warranty
  • Station Level Adjust
  • Key/Index Heavy Duty Bearing Registration
  • Center Shaft Bearing Rotation
  • Adjustable Screen Lift Tension

$3,395.00 plus crating


RANAR 4 Color/4 Station Rotary Press With Micro Registration - V-4400

    RANAR V-4400
  • Micro Registration
  • Screen Angle Pitch & Bank Adjustment
  • Off-Contact
  • Modular Construction
  • Full 3 Year Warranty
  • Station Level Adjust
  • Key/Index Heavy Duty Bearing Registration
  • Center Shaft Bearing Rotation
  • Adjustable Screen Lift Tension

$2,495.00 plus crating


RANAR 6 Color/1 Station Rotary Press With Micro Registration - V-6100

    RANAR V-6100
  • Micro Registration
  • Screen Angle Pitch & Bank Adjustment
  • Off-Contact
  • Modular Construction
  • Full 3 Year Warranty
  • Station Level Adjust
  • Key/Index Heavy Duty Bearing Registration
  • Center Shaft Bearing Rotation
  • Adjustable Screen Lift Tension
  • Upgradable to multiple stations.

$1,995.00 plus crating


RANAR 4 Color/1 Station Rotary Press With Micro Registration - V-4100

    RANAR V-4100
  • Micro Registration
  • Screen Angle Pitch & Bank Adjustment
  • Off-Contact
  • Modular Construction
  • Full 3 Year Warranty
  • Station Level Adjust
  • Key/Index Heavy Duty Bearing Registration
  • Center Shaft Bearing Rotation
  • Adjustable Screen Lift Tension
  • Upgradable to multiple stations.

$1,495.00 plus crating


RANAR Econo Series Bench Presses

RANAR Bench PressesRANAR manufactures many Econo Screen printing presses for the entry level t-shirt Printer. Configured as 1, 2 and 4 colors and 1 or 2 stations. All of these t-shirt presses are non-micro adjust, but feature roller bearing and steel key registration system for perfect multi-color prints every time.

Adjustments for screen angle, warp or uneven screens, off contact, and our patented adjustable screen lift tension. These portable printers are made of steel and are light weight, but strong enough to last with everyday use. Watch Video

Available in 1-2-4 color and the 4 color with Pony stand. Same accessories as Vista Series. Same construction build with index key index bearing registration. Powder coated. 3 year warranty. These presses do not have micro registration.


RANAR 16 X 16 Infrared Flash Cure Unit

RANAR Infrared Flash Cure UnitFlash Dryers, Ranar is an industry leader in the design and mfr. of flash dryers from 16x16 all the way to 24x36. They start by using the best IR panels in the industry and add the controls and features which allow ultimate control of the flash dryer.

Features: 16x16 panel, no heat control, stand and casters, available in 110v or 220v, 2 yr warranty on heater panels.
Watch Video

$395.00


RANAR Infrared Belt Dryers

RANAR has a Conveyor Dryer to fit any size Screen-Printing Shop or application. We use only highest quality color-blind electric infrared heaters and components and incorporate many features that other manufacturers charge extra for. RANAR quality, efficiency, and production rates are the envy of the industry. Watch Video

Turbo Jet-Star Infrared Jet Air

Turbo Jet-Star Infrared Jet AirScreen printed water base and discharge inks require hot air and heat, to properly dry. The Turbo Jet Star uses a large volume of hot air produced by electric radiant infrared heaters directed onto the conveyor belt to achieve high production convection drying of these inks. Their unique jet air system re-circulates air inside the oven.

Also included is a powered exhaust with a adjustable dampener, to assist in the evacuation of air moisture build up. The electric conveyor dryers have respectable outputs in comparison to gas dryers without the initial higher costs. The production capability of these dryers would greatly enhance any of our silk screen shop packages. 24” belt, 8’ conveyor.

$4,395.00 plus crating


Curestar 4000 8' Belt Dryer

Curestar 4000 8' Belt DryerThe CURESTAR 4000 infrared conveyor dryer, is the most affordable and economical 8'ft dryer for the silk screen printing market. Rated at 200 shirts per hour, using a 4000 watt (1) 24''x 24''heater in a 4 ft insulated tunnel achieves the lowest energy cost per unit average compared to our competitors.

RANAR offers many features that other manufacturers charge extra for, such as a quality solid state heat control, adjustments for temperature, panel height, gates, and belt speed. These make setting up different applications on this conveyor dryer a snap. It has crowned rollers for easy belt tracking and a 24''inch wide belt.

$2,895.00 plus crating


Scamp DX200 5' Belt Dryer

Scamp DX200 5' Belt DryerRANAR manufactures the DX200 Scamp tee shirt dryer for the entry level screen printer. This conveyor dryer is one of the best options on the market in terms of price and versatility. Available in 120 or 220 volt, it has many features that other manufacturers don't offer. Such as adjustable heater height, temperature, belt speed, and a removable oven hood for curing caps.

Whether you're silk screening t-shirts, sweats, hoodies, jackets or hats. This conveyor dryer is 24" wide 60" long with a 18" inch wide belt. With production rates of 50 to 65 pieces per hour screen printed with plastisol ink.

$1,895.00 plus crating


RANAR Blacklight Exposure Units

The model XPO-2426 Vacuum Exposure Unit is simple and easy to use. Designed for the small screen printing Shop, standard features include 8, 20 watt unfiltered ultraviolet black-light fluorescent bulbs, a digital countdown timer and vacuum. These features make exposing block letters, halftones, and simulated process images with high resolution fast and easy. The XPO series exposure units are an important part of any screen printing shop's pre-press room. Watch Video

XPO-2426 Vacuum Exposure Unit

XPO-2426 Vacuum Exposure Unit

  • 8 High output unfiltered blacklite bulbs.
  • Digital countdown timer
  • Powerful vacuum for quick draw down
  • Rubber blanket provides perfect contact between positive and screen
  • Automatic vacuum and light shut down
  • 8-24" bulbs provides very rapid exposing
  • Complete w/stand
  • Digital countdown timer
  • 1 year warranty
  • 22"X24" Max screen capacity

$1,295.00 plus crating


CBX 2024 Exposure Unit

The CBX 2024 is a low cost, economical screen exposure unit designed for the entry level tee shirt printer working from home. This screen exposure unit has an exposure area of 20x24, and features UV black-light fluorescent bulbs (20 watts each), analog timer, a padded weight to compress for positive film-to-screen-glass contact, and 110 volts.

CBX 2024 Exposure Unit

  • 4 bulbs for rapid burning
  • Optically clear glass
  • Countdown timer mechanical
  • 110v operation
  • Burns 20X24 screen size!
  • Low cost
  • Padded weight included

$395.00 plus crating


RANAR Econo Washout Booth

Econo Washout BoothThis is a great entry level galvanized sheet metal washout booth with plated nuts and bolts. The unit includes a backlight attachment with bulbs. Watch Video

$525.00 plus crating


Adjustable Screen Rack

Adjustable Screen RackThis is a finished metal screen rack with welded screen slots and adjustable slide connectors. This screen rack can be adjusted to fit 20x24 and 23x31 screens for a snug fit.

$249.00 plus crating


RANAR offers a complete line of shop packages. If you feel your needs exceed the products listed here, please contact us for more information. And as always if you have any questions about the equipment or purchases, don’t hesitate to get in touch with us. Thanks for considering doing business with us. We appreciate your patronage very much.
